Assembly Metal M12 Waterproof Connectors 12pin Male And Female Wireable

Brand Name : Rigoal

Model Number : M12 Field Wireable Connector

Certification : CE,IP68,ROHS,REACH

Place of Origin : Guangdong, China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 30work day

Packaging Details : 46*30*30

Application : Automotive

Coding : A / B / C / D / K / L / X / S / T Code

Orientation : Straight / Right Angle

Shell Material : Plastic / Metal Shell

Type : Circular Connector

Gender : Female / Male

Protection degree : IP67/IP68

Termination Style : Solder Type / Screw Clamp

Contact Now

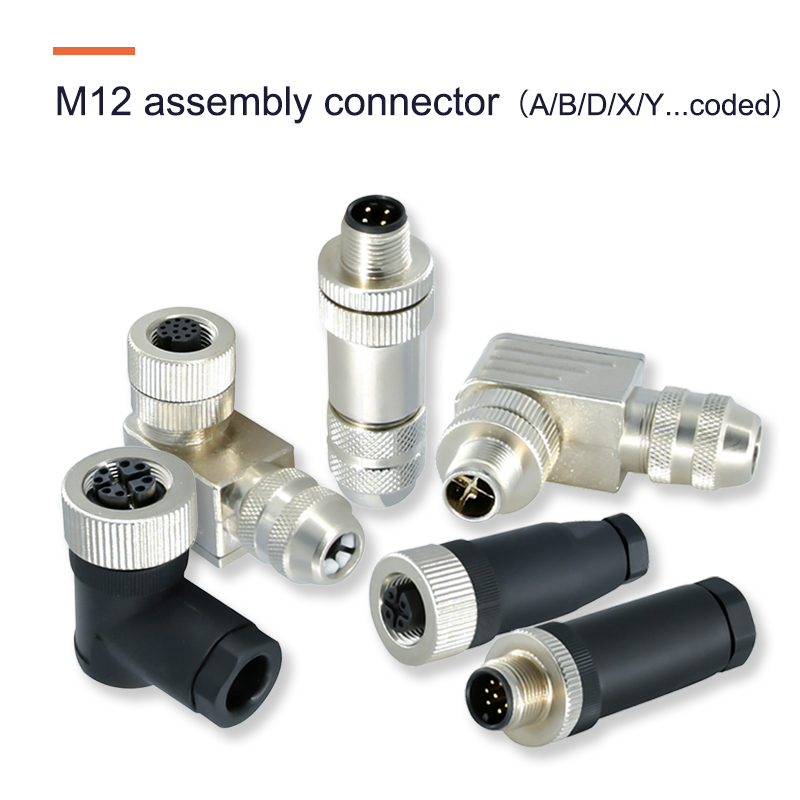

m12 Assembly metal 12pin male and female waterproof connectors

The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.

Products Feature

M12*1 thread locking mechanism, anti-vibration locking design;

Easy quick connect and disconnect coupling;

Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;

A, B, C, D, K, L, X, S, T coding available;

Meets IP67/IP68 waterproof requirements;

Temperature Range: -25°C ~ + 85°C ;

Alternative mount arrangements for solder cup or PCB;

Panel Mount and distribution version available;

Benefits

Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance

Assembly Metal M12 Waterproof Connectors 12pin Male And Female Wireable

Assembly Metal M12 Waterproof Connectors 12pin Male And Female WireableAssembly Metal M12 Waterproof Connectors 12pin Male And Female Wireable

1.What is the difference between M12 connector coding?

A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.

B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.

C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.

D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.

S-coded are for ac power application.

T-coded are for dc power application.

X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.

2. What is the application prospect of M12 connector

M12 connectors will be more suitable for the Industrial Internet of Things (IIoT).

The IIoT is a real-time data connection, driven by processing and transmitting data at faster speeds, on progressively smarter and smaller machines. The value of the IIoT goes beyond data collection and transmission, it benefits including but not limited to the ability to identify disruptions, discovering unused capacity, reducing maintenance costs and downtime, improving safety, and maximizing overall equipment effectiveness.

M12 connectors' advantages in the speed, reliability, and ruggedness, etc perfect match the smart factories' demand.

3. How to purchase M12 connectors from Rigoal?

1. Please send us the specification or drawing for the items with quantity and performance requirements.

2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days.
