CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU

Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE,ROHS,ISO9001

Place of Origin : Shen zhen,China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pin : 3 / 4 / 5 / 6 / 8 Pin

Rated Voltage : 60V for 3/4/5/6 pin, 30V for 8 pin

Insulation Resistance : ≥100 MΩ

Direction : Straight / Angled

Coding : A/B/D/K/L/M/S/T/X

Rated Current : 4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin

Contact Now

CE Certification M12 Electrical Wire Connector 3 Pin Male To Female Right Angle

Product Description

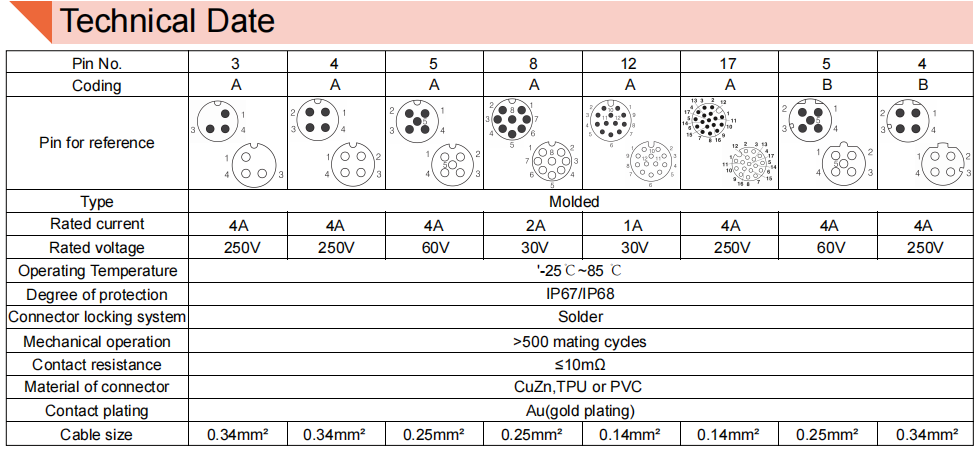

Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Rigoal connector(RG)
Model Number
M12 molding connector cable
Type
M12
Application
Automotive
Gender
female
Product name
M12 5pin female to female shielded cable
Application
Sensor or Automation
Coupling nut/screw
Brass with nickel plated
Standard
IEC61076-2-101
Contacts
3 4 5 8 12pins
Contact way
solder
IP degree
IP67/IP68
Type
M12
Ambient temperature
25C ~ + 85°C

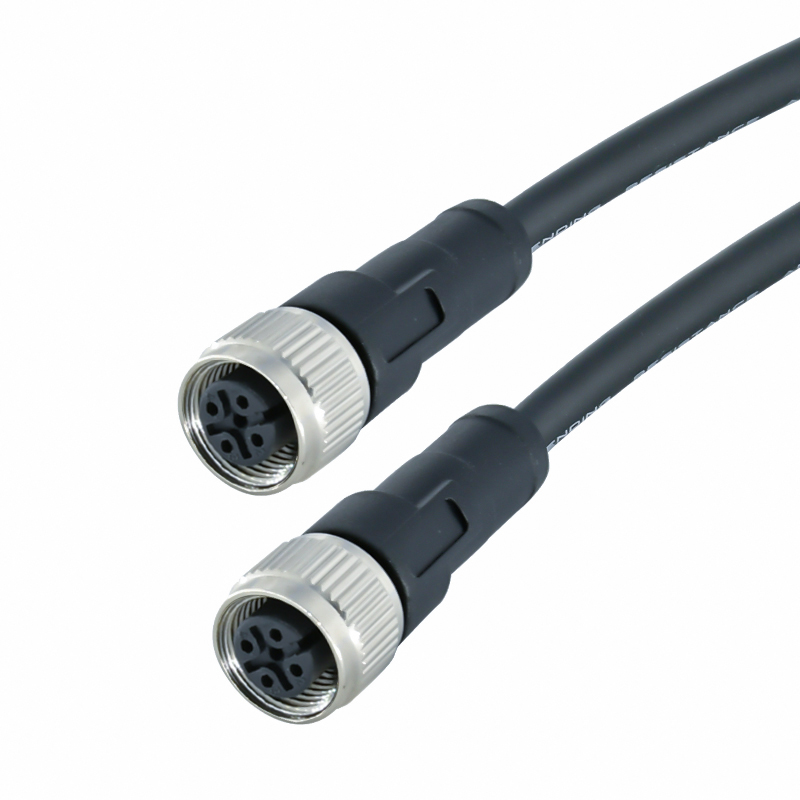

CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU

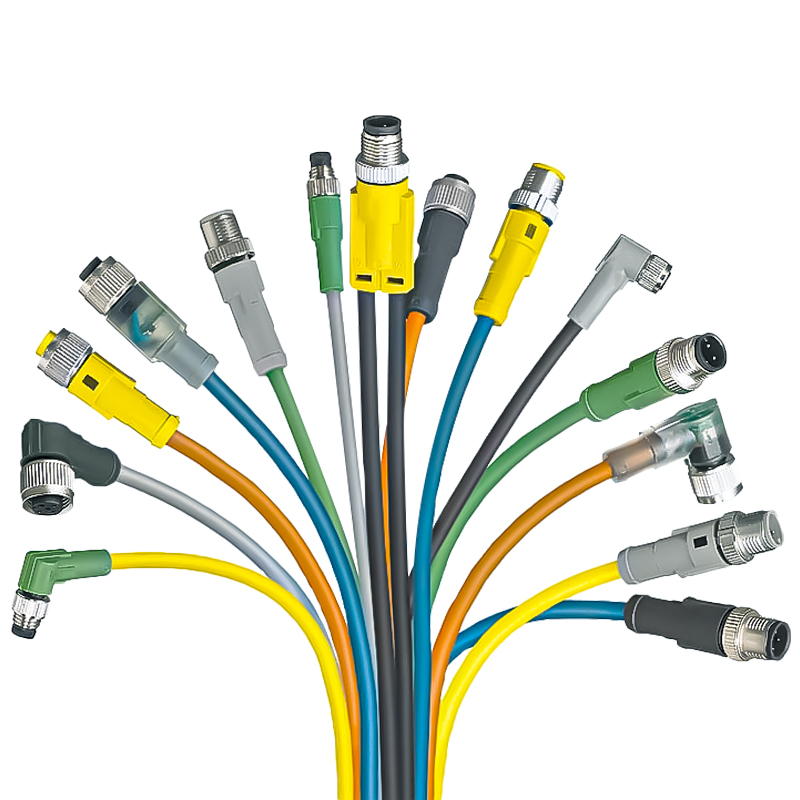

CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU
CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU
CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU

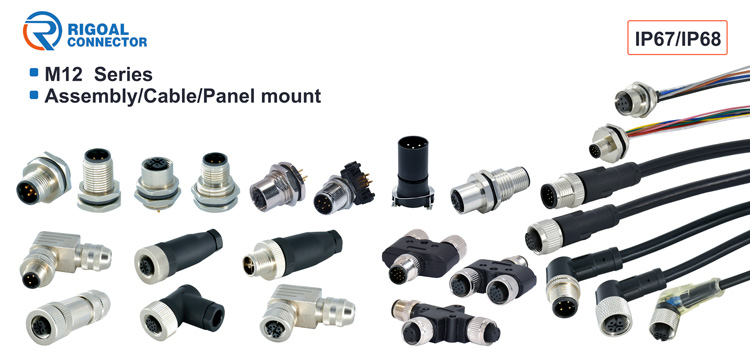

The M12 series features sensor and actuator connectors with locking thread for electronics automation, process control,
and commercial electronics.
We offer many different cable connectors, panel mount receptacles, field attachable/ installable connectors and various
accessories.
Our connectors have industry standard A/B/C/D/S/T/X cording, for both screw locking and quick-locking styles...
High degree of protection IP67, safe to use on site 2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times
mating life 3. Anti-vibration locking screw design 4. Support samples, retail and bulk orders
CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU
CuZn M12 Waterproof Electrical Wire Connector Angled 3 Pin Male To Female Right Angle TPU
