Straight Female M12 Waterproof Connector 17 Pin Plastic Assembly

Name: Straight Female M12 Waterproof Connector 17 Pin Plastic Assembly
Brand: RIGOAL
Price: 1 USD

Wholesale Straight Female M12 Waterproof Connector 17 Pin Plastic Assembly from china suppliers

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE，ROHS，ISO9001

Place of Origin : Shen zhen，China

MOQ : 500

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Shell Material : Metal / Plastic

Rated Voltage : 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin

Connector Type : to M12 / D-sub / RJ45 Ethernet / USB / MINI DIN / M8 / GX12

Application : Miniature Sensors / Industrial Camera / Electrical Bike

Code : A / B / C / D / K / L / X / S / T Code

Orientation : Straight / Right Angle / Straight to Right Angle / Y Type

Rated Current : 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin

Cable Type : Shield / un-shield & PVC (general) / PUR (oil resistant)

Application02 : Packaging / Labeling & Logistic Factory automation and fieldbus module

Contact Now

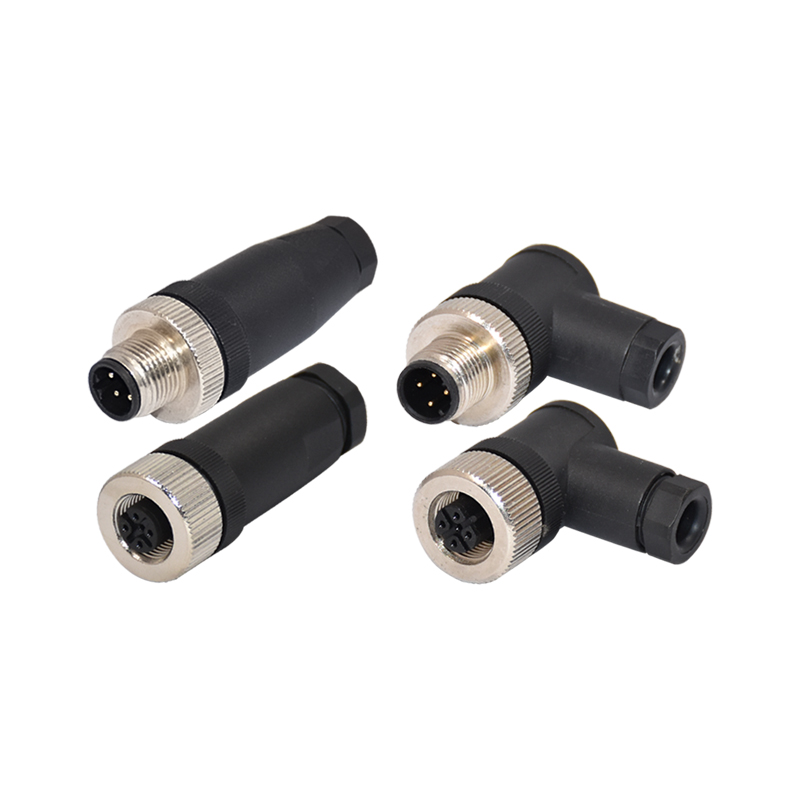

M12 Female Straight 3pin-17pin Plastic Assembly Connector

Product Description

Straight Female M12 Waterproof Connector 17 Pin Plastic Assembly

 This series connectors are widely used in the aerospace, military, automotive, electric power, mechanical, automation, as well as
 the electrical service industry. We design and produce according to international and the U.S. military standard, our products can
 substitute European, US and Taiwan connectors, own the same quality

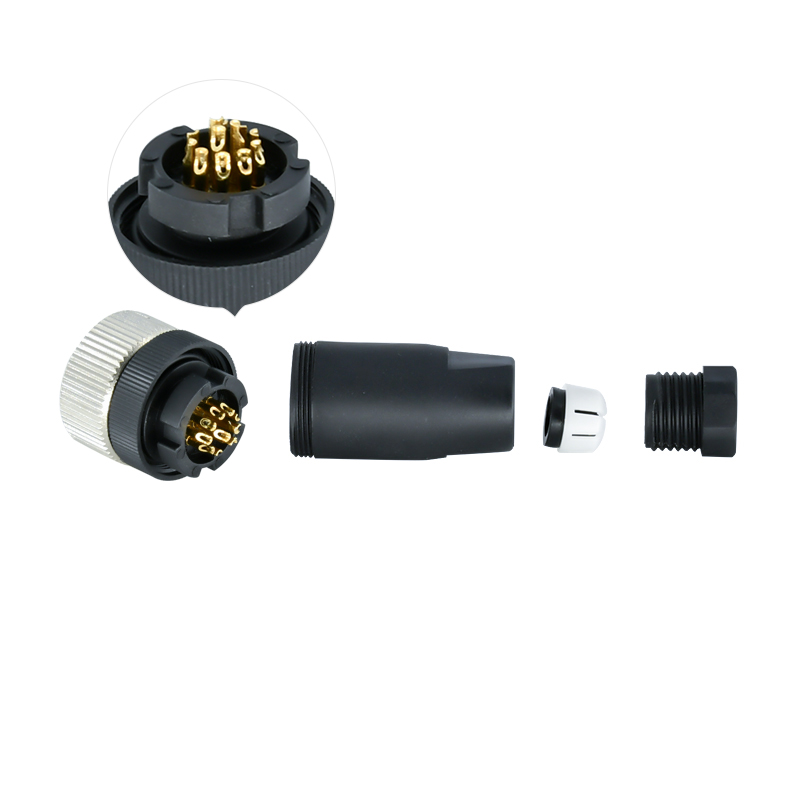

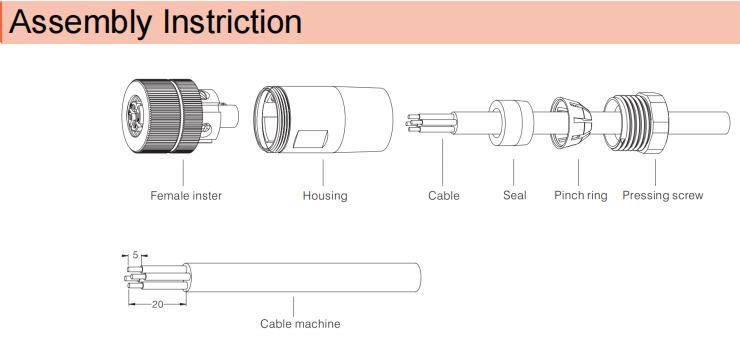

M12 connector refers to the shell, plug socket connection nut, the tail in the attachment. Shell function is to protect the
 insulator and contact body (known as pin jack) inside the M12 connector parts such as not being damage. The orientation of the
 keyway guarantee plug and socket. Coupling nut for socket connection and separation. Tail accessories used to protect wires and
 contact the end it doesn't hurt and used for body fixed cable. Shell also has certain electromagnetic shielding effect and
 waterproof function.

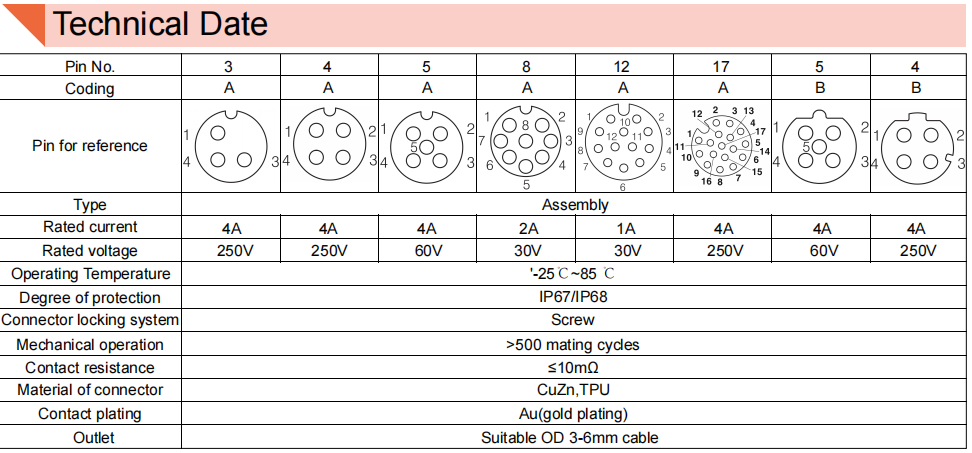

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Eonly
Model Number	M12 metal connector
Type	ADAPTER
Application	Automotive
Gender	Male
Shell Material	Metal / Plastic
Rated Voltage	250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
Connector Type	to M12 / D-sub / RJ45 Ethernet / USB / MINI DIN / M8 / GX12
Application	Miniature Sensors / Industrial Camera / Electrical Bike
Code	A / B / C / D / K / L / X / S / T Code
Orientation	Straight / Right Angle / Straight to Right Angle / Y Type
Rated Current	4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
Cable Type	Shield / un-shield & PVC (general) / PUR (oil resistant)
Application02	Packaging / Labeling & Logistic Factory automation and fieldbus module

Packing & Delivery

Our products have two size packaging 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

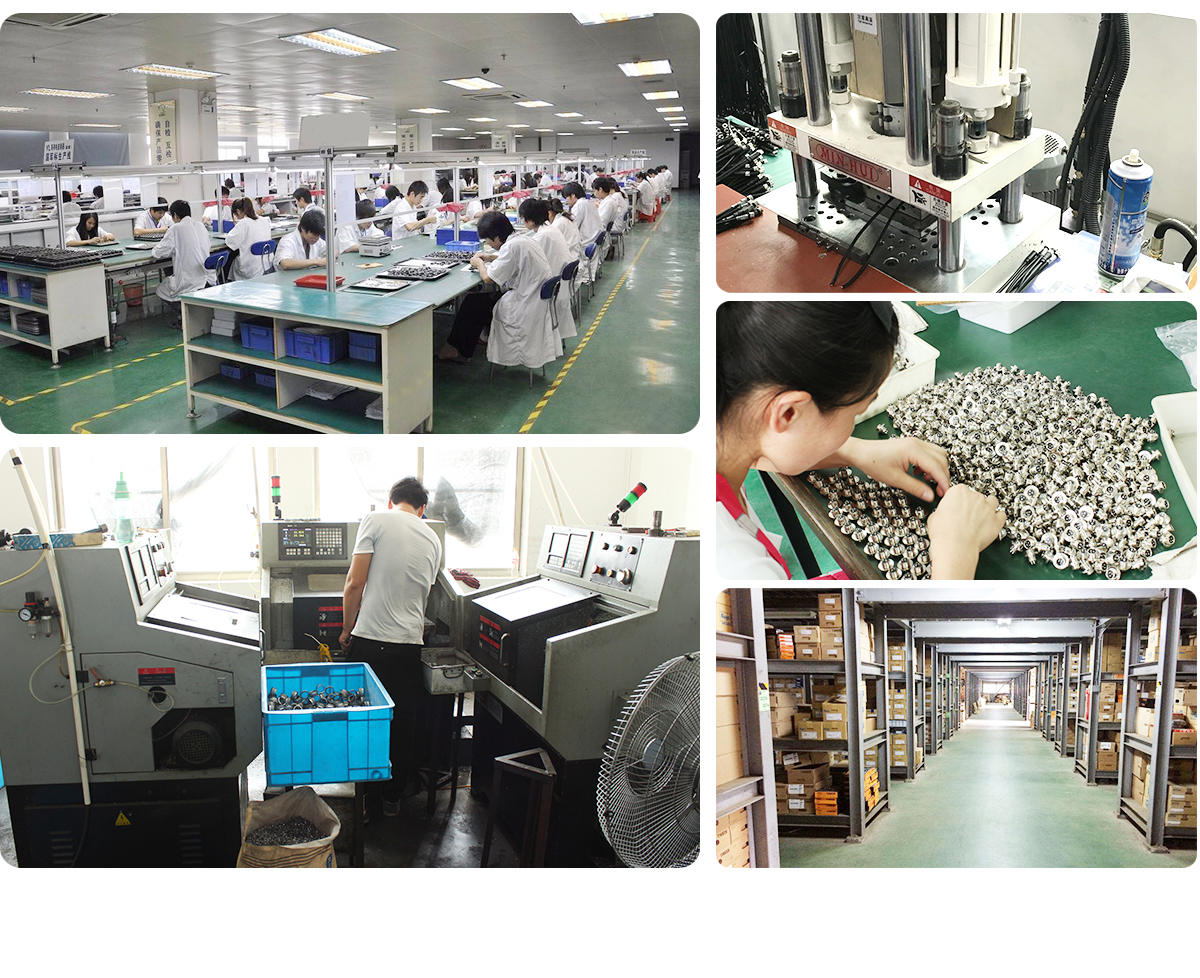

Company Profile

Eonly was founded in 2013 and specialized in producing various waterproof cables&connectors such as M8, M12, M16, M23, D-SUB.Our products mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and car electronics industry and so on , they are equivalent to Phoenix, Binder, Lumberg and Molex etc. Customer Foremost, Service First ,Quality first is our company's philosophy.Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel.Meanwhile, we have agents and customers all over the world. We are spoken highly by our customers. Our products have obtained certifications of ISo9001,CE and IP68.

FAQ

1. who are we?
 We are based in Guangdong, China, start from 2020,sell to Northern Europe(18.00%),Central America(16.00%),North America(13.00%),Western Europe(12.00%),Southern Europe(12.00%),South America(10.00%),Eastern Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%). There are total about 51-100 people in our office.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 waterproof connector,waterproof connector cable,power waterproof connector,LED waterproof connector,RJ45 waterproof connector

 4. why should you buy from us not from other suppliers?
 Eonly has more than 12 years of manufacturing and trading experience,which is specialized in producing various power waterproof connectors such as RJ45, K20 series,USB, D-SUB,and M12 series. Our products have obtained certifications of ISo9001,CE and IP68.

 5. what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
 Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
 Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
 Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Product Tags:

Straight Female M12 Waterproof Connector

Metal Plastic M12 Waterproof Connector

17 Pin Plastic Assembly Connector
