M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU

Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE,ROHS,ISO

Place of Origin : Shen zhen,China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Product name : IP67 waterproof m12 plastic T type power cable connector

Termination : screw

Insert material : TPU+GF

Contact material : Brass with gold plated

Overmold material : Transparent TPU

Coupling material : Brass with nickel plated

Number of pole : 2,3,4,5,6,8,12 pins

Degree of protect : IP67/IP68

Contact Now

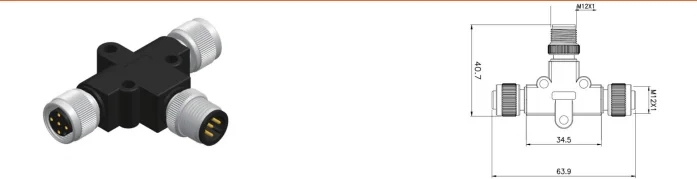

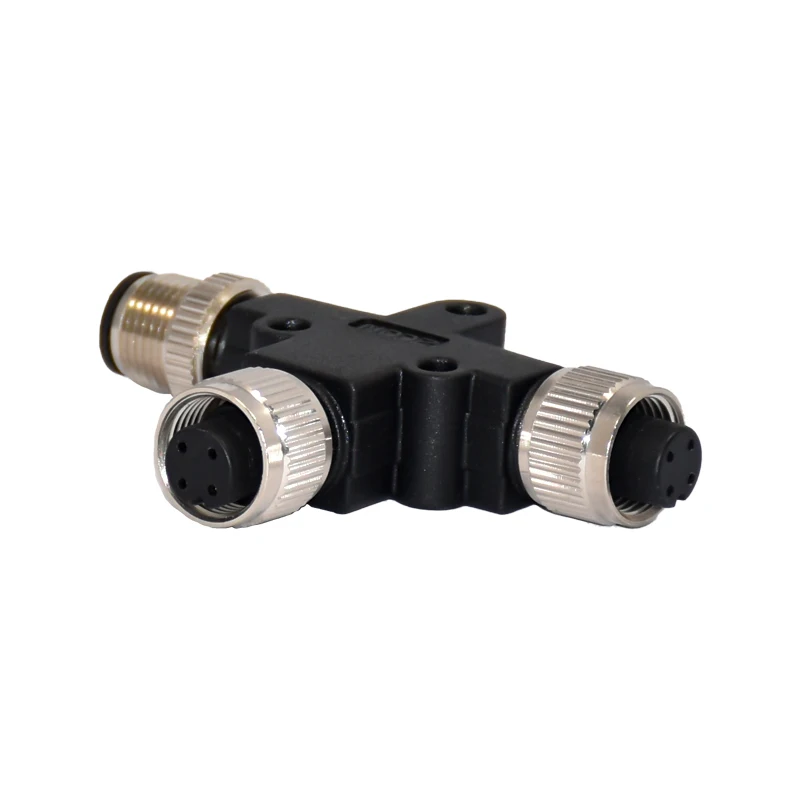

M12 T type 3 way 1male to 2 female waterproof 5pin connector shunt

Product Description
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
Advantages :
1. High degree of protection IP67, safe to use on site 2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times
mating life 3. Anti-vibration locking screw design 4. Support samples, retail and bulk orders
.

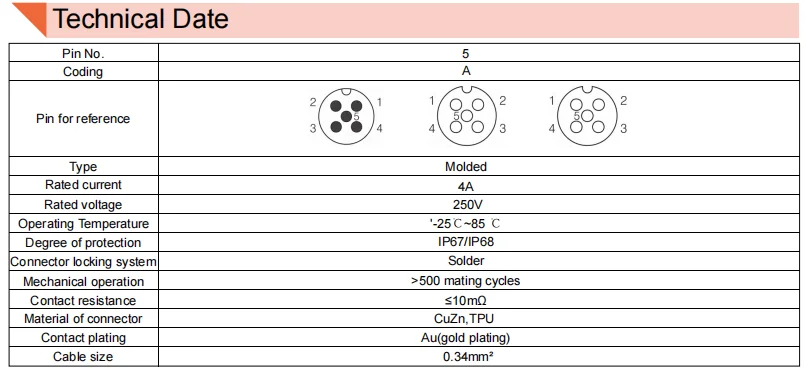

Technical data of cable waterproof connector
Technical data of cable waterproof connector
Standard :IEC 61076-2-101
Coding : A,B,D,X
Ambient temperature:-20°C~+80°C
Insulation resistance ≥ 100M Ω
Contact resistance:≤5MΩ
Degree of peotection : IP67 in locked condition
Certified:CE ,ROHS,IOS
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
Specification
item
value
Place of Origin
Shen zhen,China
Brand Name
Rigoal connector(RG)
Model Number
4pin female cable connector
Type
M12 T type splitter connector
Application
Automotive
Gender
Female
Pins
30P
Product name
IP67 waterproof m12 plastic T type power cable connector
Termination
screw
Insert material
TPU+GF
Contact material
Brass with gold plated
Overmold material
Transparent TPU
Coupling material
Brass with nickel plated
Number of pole
2,3,4,5,6,8,12 pins
Operate temperature
-20℃~+80℃
Degree of protect
IP67/IP68
Standard
IEC 61076-2-101
Packing & Delivery
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 connector, waterproof connector, M12 cable connector with three kinds of package as below: 1.Each piece in one PE bag, then put in a small carton 2.OEM package is avaiable 3.According to customer requirement
Company Profile
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
M12 RG TPU GF Waterproof 5 Pin Connector T Type 1 Male To 2 Female TPU
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to Phoenix, Binder, Lumberg and Molex etc. Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First. Quality first. Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(15.00%),Southern Europe(15.00%),Western Europe(15.00%),Northern Europe(10.00%),Central America(10.00%),North America(10.00%),South America(9.00%),Mid East(4.00%),Eastern Asia(4.00%),Africa(3.00%),Southeast Asia(3.00%),Domestic Market(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
M8 waterproof connector,M12 sensor cable,M16 industrial connector,M23 waterproof connector,air plug

4. why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italia
