TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

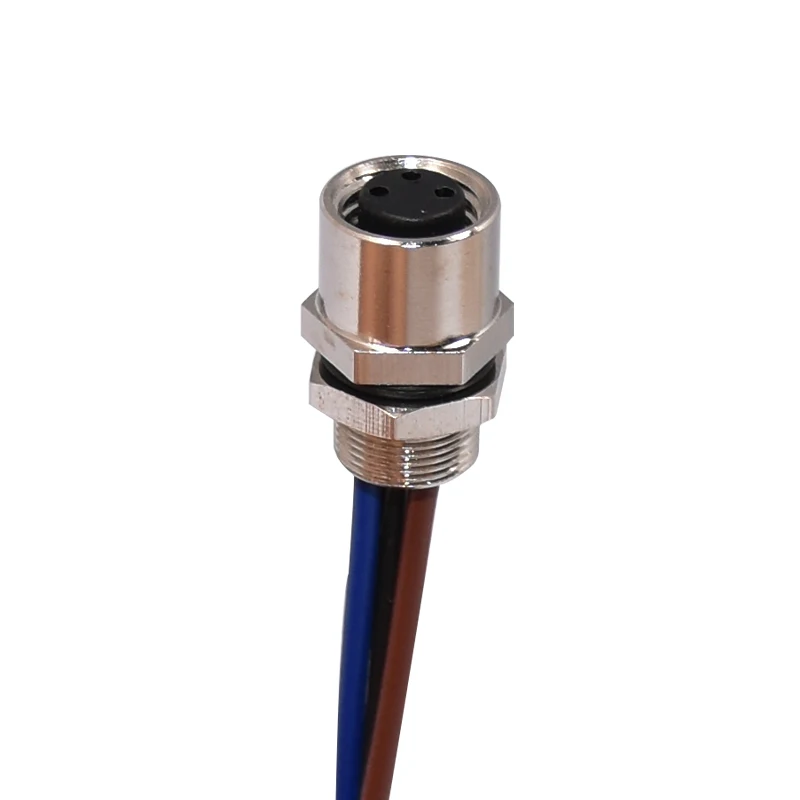

TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail

  • 1
  • 2

Brand Name : RIGOAL

Model Number : M8 panel mount connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Factory automation and process control

Product name : M8 panel mount connector

Termination : Soldering

Rated voltage : 60V

Coupling nut/screw : Brass,nickel-plated,CNC

Rated temperature : -25℃~80℃

Rated current : 3A

Contact carrier : TPU+GF

IP rating : IP67,IP68

Contact : Brass

Contact Now

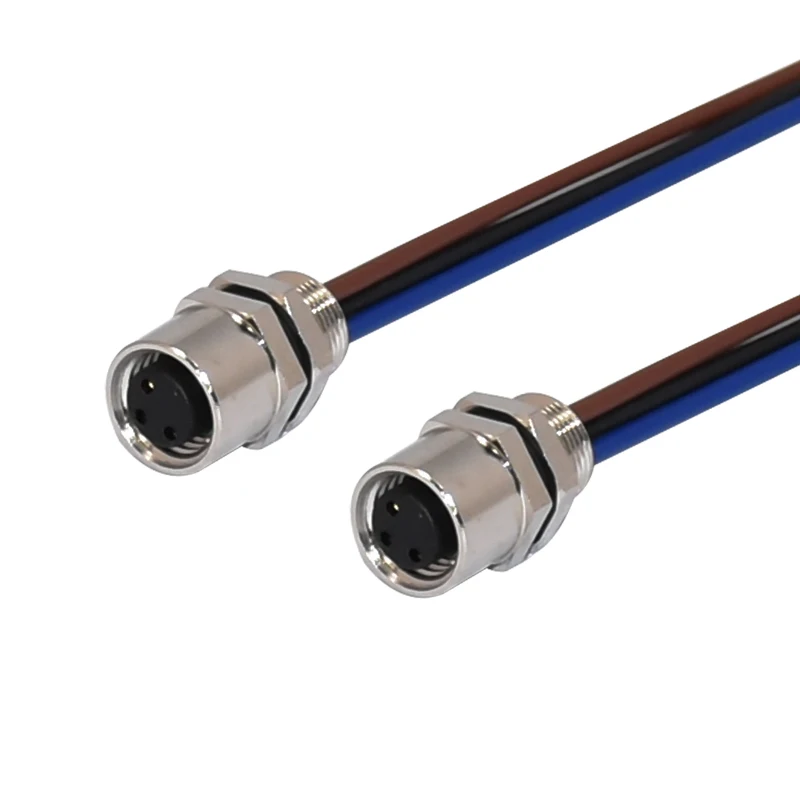

IP67 Supply Back Mount Panel Mount M8 Socket Connector Female Straight 3pin 4pin 5pin 8pin M8 Panel Mount With Pigtail

Product Description
item
value
Place of Origin
China
Guangdong
Brand Name
RIGOAL
Model Number
M8 panel mount pcb
Type
DC type connector
Application
Power,LED,Electrical equipment
Gender
male
Pins
4p
Application
Factory automation and process control
Product name
M8 panel mount connector male 4pin A-Conding PCB mount rear m
Termination
Soldering
Rated voltage
60V
Coupling nut/screw
Brass,nickel-plated,CNC
Rated temperature
-25℃~80℃
Rated current
3A
Contact carrier
TPU+GF
IP rating
IP67,IP68
Contact
Brass
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail

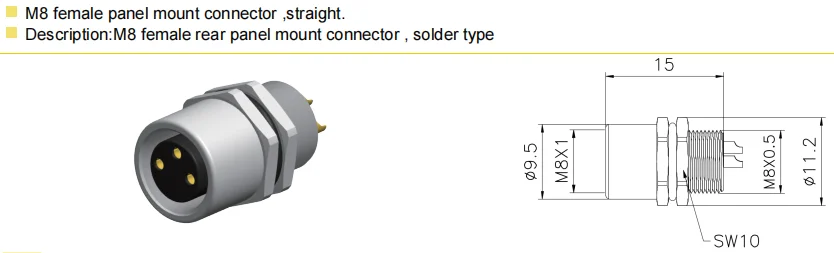

The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are

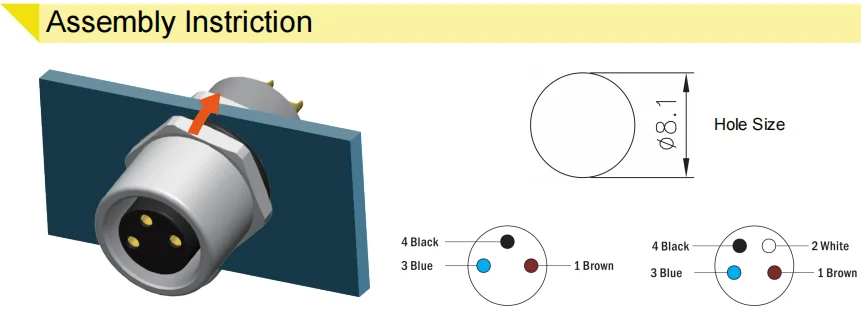

available with solder termination and PCB panel assembly type, with rear mounting and front mounting.
Insulation resistance:≥100 MΩ
Contact resistance:≤5mΩImpulse voltage:1500V
O-ring:FKM/SiliconPollution degree:3
Sealing:Epoxy resin
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail

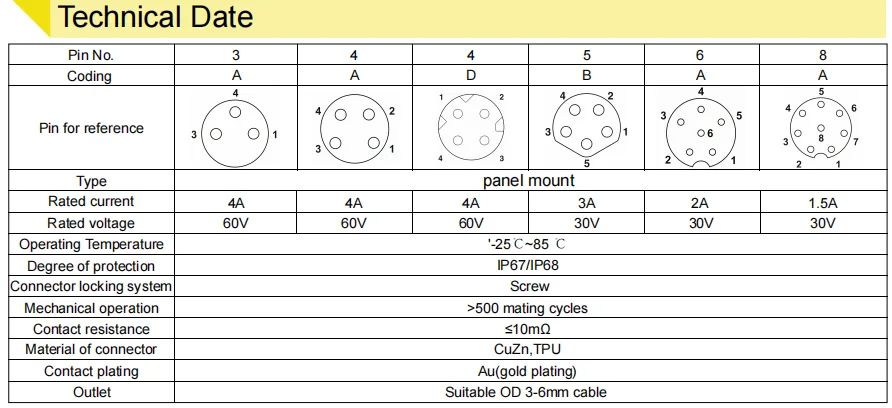

Specification
Packing & Delivery
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail
TPU GF M8 M12 Waterproof Panel Mount Connector Straight 3p 4p 5p 8p Rigoal With Pigtail
M8 molded waterproof cable have two size packaging 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
